Physical Characteristics Mobile computer TC75

Dimensions
6.3 in. L x 3.3 in. W x 1.1 in. D/161 mm L x 84 mm W x 28 mm DD
Weight  13.3 oz./376 g
Display  4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
Imager Window    Corning Gorilla Glass
Touchpanel       Dual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately); Corning Gorilla Glass
Backlight   LED backlight
Power   PowerPrecision/ PowerPrecision+1: Improved battery technology for advanced state of health and real-time visibility into battery metrics for better battery management Li-Ion 3.7 V, 4620 mAh typical; battery swap function
Expansion Slot
TC75: User accessible MicroSD up to 32GB SDHC and up to 64 GB SDXC
TC75x: User accessible MicroSD up to 32GB SDHC and up to 128 GB SDXC

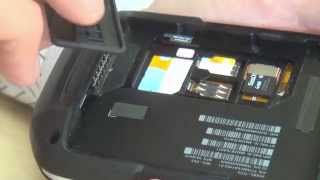

SIM
TC75: 2 Nano SIM slot (4FF); 1 Mini SIM/SAM slot (2FF)
TC75x: 2 Nano SIM slot (4FF); 1 Mini SIM (2FF)
Network Connections   USB 2.0 High Speed (host and client); WLAN
Notification       Audible tone; multi-color LEDs; vibration
Keypad  On-screen keypad; Enterprise Keyboard
Voice and Audio             Three microphone support with noise cancellation; vibrate alert; speaker; Bluetooth wireless headset support, High quality speaker phone; PTT headset support; Cellular circuit switch voice; HD Voice

Performance Characteristics

CPU
TC75: 1.7 GHz dual core processor
TC75x: 1.8 GHz hex core 64 bit processor
Operating System
TC75: Android 5.1 Lollipop with Zebra’s Mobility Extensions (Mx)
TC75x: Android 8.1 (Oreo) with Mx
Memory
TC75: 1 GB RAM / 8 GB Flash pSLC
TC75x: 2 GB RAM / 16 GB Flash pSLC or 4 GB RAM / 32 GB Flash pSLC

User Environment

Operating Temperature   -4° F to 122° F/-20° C to 50°C
Storage Temperature    -40° F to 158° F/-40° C to 70° C
Humidity            5% to 85% non-condensing
Drop Specification
Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G, Multiple 6 ft./1.8 m drop to concrete across full operating temperature range
Tumble Specification     2,000 3.2 ft./1.0 m tumbles; meets and exceeds IEC tumble specifications
Sealing      IP65 and IP67 per applicable IEC sealing specifications
Vibration     4 g’s PK Sine (5 Hz to 2 kHz); 0.04g2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Thermal Shock  -40° F to 158° F/-40° C to 70° C rapid transition
Electrostatic Discharge (ESD)
+/-15kVdc air discharge
+/-8kVdc direct discharge
+/-8kVdc indirect discharge

Interactive Sensor Technology (IST)

Light Sensor   Automatically adjusts display backlight brightness
Motion Sensor  eCompass, 3-axis Gyro, 3-axis accelerometer

Data Capture

Scanning
SE4750 imager (1D and 2D); extraordinary range:
Scan range – Code 39 barcode:20 Mil: 1.6 in to 36.3 in/4.1 cm to
92.2cm  3 Mil: 2.8 in to 6.2 in/7.1 cm to 15.9 cm
Camera
Rear – 8 MP autofocus; f/2.4 aperture (TC75)
Rear – 13MP autofocus (TC75x)
Front – 1.3 MP fixed focus (TC75/TC75x)
NFC
TC75: Type A and B, Felica and ISO 15693 cards. P2P mode and Card Emulation via UICC and Host
TC75X: ISO 14443 Type A and B; Felica, and ISO 15693 cards. P2P mode and Card Emulation via UICC and Host

Wireless WAN Data and Voice Communications

Radio Frequency Band
TC75
Worldwide:
LTE: 800/850/900/1800/2100/2600 (FDD 20,5,8,3,1,7); UMTS/HSPA/HSPA+: 850/900/1900/2100; GSM/GPRS/EDGE: 850/900/1800/1900
Americas:
LTE: 700/850/1900/AWS/2100 (FDD 17,5,2,4,1); UMTS/HSPA/HSPA+: 850, 900, AWS, 1900, 2100; GSM/GPRS/EDGE: 850/900/1800/1900
TC75x
Worldwide:
LTE: 700,800/850/900/1800/2100/2600 (FDD 28,20,5,8,3,1,7); UMTS/HSPA/HSPA+: 850/900/1900/2100; GSM/GPRS/EDGE: 850/900/1800/1900
Americas:
LTE: 700/850/1900/AWS/2100, (FDD 13,12,17,5,26,2,25,4,1); UMTS/HSPA/HSPA+: 850, 900, AWS, 1900, 2100 GSM/GPRS/EDGE: 850/900/1800/1900; CDMA: 850,1900 (BC0, BC10, BC1)
GPS
TC75: Integrated, Autonomous, Assisted GPS (A GPS), Navstar, GLONASS
TC75x: Integrated, Autonomous, Assisted GPS (A-GPS), Navstar, GLONASS, Beidou

Wireless LAN

Radio
TC75: IEEE® 802.11a/b/g/n/d/h/i/k/r
TC75x: 2x2 MIMO; IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/w
Data Rates
TC75
5GHz: 802.11a/n — up to 150 Mbps;
2.4GHz: 802.11b/g/n — up to 72.2 Mbps
TC75x
5GHz: 802.11a/n/ac — up to 866.7 Mbps;
2.4GHz: 802.11b/g/n — up to 144 Mbps
Operating Channels
TC75
Chan 1 - 13 (2412 - 2472 MHz); Chan 36 - 165 (5180 - 5825 MHz)
Channel Bandwidth: 20, 40 MHz
TC75x
Chan 1 - 13 (2412 - 2472 MHz), Chan 36 - 165 (5180 - 5825 MHz), Chan 138, Chan 142
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies depend on regulatory rules and certification agency
Security and Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP Fast2 and LEAP
Data in Motion: FIPS 140-2 Level 1
Data at Rest: FIPS 140-2 Level 1
Features
TC75: Wi-Fi Multimedia™ (WMM), Soft AP, Wi-Fi Direct, Miracast
TC75x: Wi-Fi Multimedia (WMM), Soft AP, MIMO with 2 Spatial Streams, 256 QAM Modulation on 5G GHz radio; Maximum Ratio Combining (MRC), Tx/Rx Low-Density Parity Check (LDPC), Transmit Beamforming(TxBF) and Beamformee (BFee) capability, Full IEEE 802.11 a/b/g/n legacy compatibility
Certifications
TC75: WFA (802.11n, WMM-PS, Wi-Fi Direct, WPS, Miracast)
TC75x: WFA (802.11n, 802.11ac, Mobile AP, Personal Hotspot, Miracast, WMM-PS, WMM-AC and Voice Enterprise)
Fast Roam          PMKID caching, Cisco CCKM, 802.11r, OKC

Wireless PAN

Bluetooth
Class 2, Bluetooth v4.0 (Bluetooth® Smart technology)
BT Wideband support HFPv1.6
Bluetooth v4.1 LE (TC75x only)
