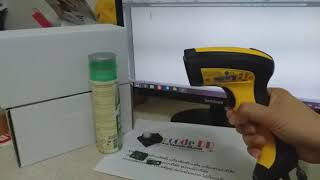

DECODING CAPABILITY

1D / Linear Codes Autodiscriminates all standard 1D codes including
GS1 DataBar™ linear codes.

2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
 Micro QR Code; QR Code

Postal Codes Australian Post; China Post; IMB; Japanese Post;
KIX Post; Planet Code; Portuguese Post; Postnet;
Royal Mail Code (RM4SCC);
Swedish Post

Stacked Codes EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
 GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites

ELECTRICAL

Current
Operating (Typical): PD9531/PD9531-HP: 335 mA

PD9531-HPE: 135 mA @ 10 VDC

Standby/Idle (Typical): PD9531/PD9531-HP: 180 mA

PD9531-HPE: 50 mA @ 10 VDC

Input Voltage PD9531/PD9531-HP: 5 VDC +/- 10%

PD9531-HPE: 10-30 VDC

ENVIRONMENTAL

Ambient Light 0 - 100,000 lux

Humidity (Non-condensing)
10 to 90% at 40 บC / 104 ⁰F; non-condensing

Temperature Operating: -20 to 50 ฐC / -4 to 122 ⁰F

Storage/Transport: -40 to 70 ฐC / -40 to 158 ⁰F

Drop Resistance Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface

Particulate and Water Sealing IP65

ESD Protection (Air Discharge) 20 kV

INTERFACES

Interfaces RS-232 / USB / Keyboard Wedge Multi-Interface

PHYSICAL CHARACTERISTICS

Colors Available Yellow/Black; Other colors and custom logo options are available for minimum quantity purchase

Dimensions 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in

Weight 330.0 g / 11.6 oz

READING PERFORMANCES

Image Capture Graphic Formats: BMP, JPEG, TIFF

Greyscale: 256, 16, 2; JPEG, TIFF

Image Sensor
PD9531: 864 x 544;

PD9531-HP/PD9531-HPE: 1280 x 1024

Light Source
Aiming: 630 - 680 nm VLD

Illumination: White LED reading light

Print Contrast Ratio (Minimum) 15%

Reading Angle Pitch: +/- 40⁰; Roll (Tilt): 360⁰; Skew (Yaw): +/- 40⁰

Reading Indicators

Beeper (Adjustable Tone and Volume); Datalogic’s

3GL™ (Three Green Lights) technology and loud

beeper for good-read feedback; Datalogic ‘Green

Spot’ on the Code; Dual Good Read LEDs

PD9531: 1D Codes: 4 mil; 2D Codes: 7.5 mil

PD9531-HP/PD9531-HPE: 1D Codes: 2.5 mil;

2D Codes: 4 mil

READING RANGES

Typical Depth of Field

Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.

PD9531 PD9531-HP
 4 mils: 6.0 to 17.0 cm / 2.3 to 6.7 in
13 mils: 4.0 to 45.0 cm / 1.5 to 17.7 in
20 mils: 4.0 to 55.0 cm / 1.5 to 21.6 in
40 mils: 4.0 to 85.0 cm / 1.5 to 33.4 in
10 mils PDF417: 2.0 to 25.0 cm / 0.8 to 9.8 in
7.5 mils Data Matrix: 9.0 to 12.0 cm / 3.5 to 4.7 in
10 mils Data Matrix: 4.0 to 18.0 cm / 1.5 to 7.0 in

PD9531-HPE

2.5 mils: 2.0 to 6.0 cm / 0.8 to 2.3 in

13 mils: 3.0 to 60.0 cm / 1.1 to 23.6 in

20 mils: 3.0 to 70.0 cm / 1.1 to 27.5 in

40 mils: 3.0 to 110.0 cm / 1.1 to 43.3 in

10 mils PDF417: 2.0 to 30.0 cm / 0.8 to 11.8 in

4 mils Data Matrix: 2.0 to 6.0 cm / 0.8 to 2.3 in

10 mils Data Matrix: 2.0 to 20.0 cm / 0.8 to 7.8 in

 SAFETY & REGULATORY

Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.

The Quick Reference Guide for this product can be referred to for a complete list of certifications.

Environmental Compliance Complies to China RoHS; Complies to EU RoHS; Complies to R.E.A.C.H.

Laser Classification Caution Laser Radiation - Do not stare into beam CDRH Class II; IEC 60825 Class 2

LED Classification IEC 62471 Class 1 LED

UTILITIES

Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge.

OPOS / JavaPOS JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.

Remote Host Download Available on request
