CORDLESS COMMUNICATIONS

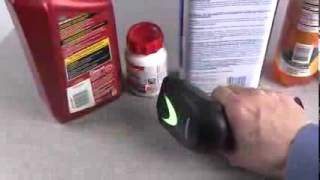

DATALOGIC STAR CORDLESS SYSTEM™
Effective Radiated Power: 433.92 MHz: < 10 mW;

910 MHz: < 1 mW

Multi-Point Configuration: Max. Readers per

Radio Receiver: 16

Point-to-Point Configuration;

Radio Frequency: 433.92 MHz; 910 MHz;

Two Way Communications

DECODING CAPABILITY

1D / LINEAR CODES Autodiscriminates all standard 1D codes

including GS1 DataBar™ linear codes.

2D CODES Aztec Code; China Han Xin Code; Data Matrix;

MaxiCode; QR Code

POSTAL CODES Australian Post; China Post; IMB; Japanese Post;

KIX Post; Korea Post; Planet Code; Postnet; Royal

Mail Code (RM4SCC)

STACKED CODES EAN/JAN Composites; GS1 DataBar Composites;

GS1 DataBar Expanded Stacked; GS1 DataBar

Stacked; GS1 DataBar Stacked Omnidirectional;

MacroPDF; MicroPDF417; PDF417; UPC A/E

Composites

ELECTRICAL

BATTERY Battery Type: Lithium-Ion: 2100 mAh

Charge Time: External Power: 4 Hours @ 12 VDC;

Reads per Charge: 60,000

CRADLE INDICATOR LEDS Battery Charging (Red); Charge Completed

(Green); Power/Data (Yellow)

CURRENT Charging (Typical): < 8 W;

Standby/Idle (Typical): < 2.5 mA @ 5 VDC

INPUT VOLTAGE 4.75 - 14 VDC +/- 5%

ENVIRONMENTAL

AMBIENT LIGHT 0 - 100,000 lux

DROP RESISTANCE Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface

ESD PROTECTION (AIR DISCHARGE) 16 kV

HUMIDITY (NON-CONDENSING) 0 - 90%

PARTICULATE AND WATER SEALING IP52

TEMPERATURE Operating: 0 to 50 °C / 32 to 122 °F;

Storage/Transport-20 to 70 °C / -4 to 158 °F

INTERFACES

INTERFACES RS-232 / IBM 46XX / USB Multi-Interface;

RS-232 / USB / Keyboard Wedge / Wand Multi-

Interface

PHYSICAL CHARACTERISTICS

COLORS AVAILABLE Black; White

DIMENSIONS Cradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 in

Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in

WEIGHT Cradle: 246.0 g / 8.7 oz; Reader: 245.0 g / 8.6 oz

READING PERFORMANCE

IMAGER SENSOR Wide VGA: 752 x 480 pixels

LIGHT SOURCE Aiming: 650 nm VLD

MOTION TOLERANCE 25 IPS

PRINT CONTRAST RATIO (MINIMUM) 25%

READING ANGLE Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40°

READING INDICATORS Beeper (Adjustable Tone and Volume);

Datalogic ‘Green Spot’ Good Read Feedback;

Good Read LED

RESOLUTION (MAXIMUM) 1D Linear: 0.102 mm / 4 mils;

Data Matrix: 0.178 mm / 7 mils

PDF417: 0.127 mm / 5 mils

READING RANGES

TYPICAL DEPTH OF FIELD Minimum distance determined by symbol length

and scan angle. Printing resolution, contrast, and ambient light dependent.

Code 39: 5 mils: 4.0 to 19.0 cm / 1.6 to 7.5 in

Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in

Data Matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in

Data Matrix: 15 mils: 0 to 23.6 cm / 0 to 9.3 in

EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in

PDF417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in

QR Code: 10 mils: 3.0 to 12.5 cm / 1.2 to 4.9 in

SAFETY & REGULATORY

AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use.

The Quick Reference Guide for this product can be referred to for a complete list of certifications.

ENVIRONMENTAL COMPLIANCE Complies to China RoHS; Complies to EU RoHS

LASER CLASSIFICATION Caution Laser Radiation - Do not stare into

beam; IEC 60825 Class 2

UTILITIES

DATALOGIC ALADDIN™ Datalogic Aladdin configuration program is available for download at no charge.

OPOS / JAVAPOS JavaPOS Utilities are available for download at no charge.

OPOS Utilities are available for download at no charge.
