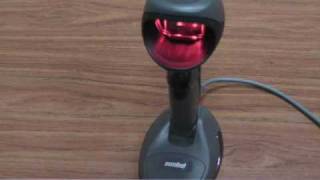

PHYSICAL CHARACTERISTICS
Dimensions 8 in. (max) H x 5.4 in. L x 3.4 in. W
20.3 cm (max) H x 13.7 cm L x 8.6 cm W
Weight 12 oz./340 g
Voltage and Current Maximum: 5 VDC +/- 10% @ 450 mA Maximum (with optional RFID module*): 5 VDC +/- 10% @ 1.2
Colour Twilight Black

PERFORMANCE CHARACTERISTICS
DS9808-SR and DS9808-LR Imager Mode
Light Source
Aiming Pattern: 650nm laser diode
Illumination: 630nm LED
Imager Field of View 39° H x 25° V
Roll/Pitch/Yaw 360°, ±65°, ±60°

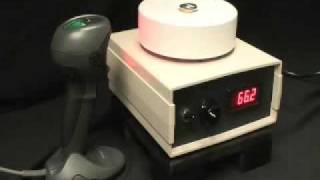

Swipe Speed Programmable up to 100 in./254 cm per second (Horizontal Read Rate)
Frame Rate Up to 60 frames per second
DS9808-LR Laser Scanner Mode
Light Source 650nm LED
Scan Angle 40° ±3° nominal

SYMBOLOGY DECODE CAPABILITY
1D UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus
supplementals, ISBN (Bookland),ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic),Code 128 (Standard, Full ASCII,UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7,Code 11 (Standard, Matrix 2 of 5), MSI Plessey, I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2
of 5, IATA, Chinese 2 of 5), GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked,
Inverse),Base 32 (Italian Pharmacode)

PDF417 (andvariants):
PDF417 (Standard, Macro),MicroPDF417 (Standard, Macro),Composite Codes (CC-A, CC-B,CC-C)

2D TLC-39, Aztec (Standard, Inverse),MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)

Postal U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post,Netherlands KIX Code, Royal Mail4 State Customer, UPU FICS 4 State Postal, USPS 4CB,
Canadian Post (Postbar)

Nominal Working Range (Handheld): See chart on back
Nominal Working Range (Hands-free): See chart on back
Minimum Resolution Code 39 – 4 mil, UPC – 7.8 mil (60%), PDF417 – 5 mil, Datamatrix – 5 mil

*The RFID module is a future option for use with the DS9808-LR only and will not be available for all countries . Please contact your local Zebra representative regarding availability.

IMAGING CHARACTERISTICS
Graphics Format Support
Images can be exported as Bitmap , JPEG or TIFF
Image Transfer Speed USB 2.0: Up to 12 Megabits/second RS-232: Up to 115 kb/second
Image Transfer Time Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb
Image Quality 120 DPI on a 4 x 6 in./10.2 x 15.2 cm document @ 6.5 in./16.5 cm

USER ENVIRONMENT
Operating Temp. 32° to 104° F /0° to 40° C
Humidity 5% to 95% RH (Non-Condensing)
Storage Temp. -40° F to 158° F / -40° C to +70° C
Drop Specification Withstands multiple 5 ft./1.5 m drops to concrete
Ambient Lighting Tolerance Tolerant to typical artificial indoor and natural outdoor (direct sunlight ) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

INTERFACES
Interfaces Supported : USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge

REGULATORY
Electrical Safety UL6950-1, CSA C22.2 No. 60950- 1, EN60950-1 / IEC60950-1
Laser Safety EN 60825-1,IEC 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2
EMI/RFI FCC Part 15 Class B, ICES-003
Class B, EN 55022, EN 55024 AS/ NZS 4268:2008, Japan VCCI
Environmental Compliant with RoHS directive 2002/95/EEC

OPTIONS
Electronic Article Surveillance Compatible with Checkpoint EAS
deactivation systems
Accessories Wall Mount Bracket; RFID Module*

NOMINAL WORKING RANGE (HANDHELD):
DS9808-LR
Code 39 – 5 mil: 0 – 5.00 in. (0 – 12.70 cm)
UPC/EAN – 10 mil (80%): 0 – 13.50 in. (0 – 34.30 cm)
UPC/EAN – 13 mil (100%): 0 – 18.00 in. (0 – 45.70 cm)

DS9808-SR
Code 39 – 5 mil: 0 – 4.50 in. (0 – 11.40 cm)
UPC/EAN – 10 mil (80%): 0 – 8.50 in. (0 – 21.60 cm)
UPC/EAN – 13 mil (100%): 0 – 10.50 in. (0 – 26.70 cm)

DS9808-LR/DS9808-SR
PDF417 – 6.6 mil: 0 – 5.00 in. (0 – 12.7 cm)
Datamatrix – 10 mil: 0 – 6.00 in. (0 – 15.2 cm)
