PHYSICAL CHARACTERISTICS

Dimensions
Scanner only:
5.63 in. H x 5.86 in. W x 3.81 in. D
14.3 cm H x 14.9 cm W x 9.7 cm D
Scanner with Table Mount Kit:
6.06 in. H x 5.93 in. W x 3.85 in. D
15.4 cm H x 15.1 cm W x 9.8 cm D

Weight 17.6 oz. / 500 g
Voltage and Current
Without auxiliary scanner:
Standby: 5 VDC +/-10% @ 125ma avg.
Operating: 5 VDC +/-10% @ 480ma avg.
With auxiliary scanner:
Standby: 12 VDC +/-10% @ 100ma avg.
Operating: 12 VDC +/-10% @ 400ma avg.
Color Midnight Black
Supported Host Interfaces USB, RS-232, Keyboard Wedge, TGCS (IBM)
46XX over RS485
Keyboard Support Supports over 90 international keyboards

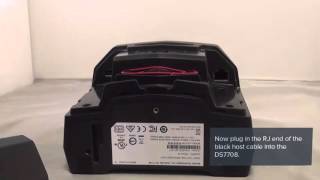

Auxiliary Scanner Interface USB
Electronic Article Surveillance
Compatible with Checkpoint EAS deactivation systems

PERFORMANCE CHARACTERISTICS
Swipe Speed Up to 100 in./sec. (254 cm/sec.)
Light Source Two deep red LEDs (660nm)
Imager Field of View
48.0° x 36.7° (bar-code reading)
48.0° x 33.7° (image capture)
Image Sensor
1280 x 960 (bar-code reading)
1280 x 880 (image capture)
Minimum Print Contrast 25% minimum reflective difference
Roll / Pitch / Yaw (Skew) 360˚, ±70˚, ±70˚ typical

USER ENVIRONMENT
Operating Temperature 32˚ to 104˚ F / 0˚ to 40˚ C
Storage Temperature -40˚ to 158˚ F / -40˚ to 70˚ C
Humidity 5% to 85% RH, non-condensing
Environmental Sealing IP52
Electrostatic Discharge (ESD)
ESD per EN61000-4-2; +/- 25 KV Air Direct; +/- 8 KV Indirect (without auxiliary scanner)
Ambient Light Range From darkness (0 fcd) to 450 fcd artificial light and
10,000 fcd direct sunlight

SYMBOLOGY DECODE CAPABILITY
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma), PDF417, Micro PDF417, Composite Codes,TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Refer to Product reference Guide for complete list of symbologies.

MINIMAL ELEMENT RESOLUTION
Code 39 – 3 mil, UPC – 7.8 mil, PDF417 – 4 mil, Datamatrix – 7.5 mil, QR Code – 7.5 mil

DECODE RANGES (TYPICAL)
Code 39 – 5 mil: 0 – 7.2 in. (0 – 18.3 cm)
UPC/EAN – 10 mil (80%): 0 – 10.0 in. (0 – 25.4 cm)
UPC/EAN – 13 mil (100%): 0 – 10.3 in. (0 – 26.1 cm)
PDF417 – 5 mil: 0 – 3.5 in. (0 – 8.9 cm)
Datamatrix – 10 mil: 0 – 5.0 in. (0 – 12.7 cm)
QR Code – 10 mil: 0 – 4.9 in. (0 – 12.4 cm)
