Standard Features

• Print Methods: Thermal transfer and direct thermal printing
• Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

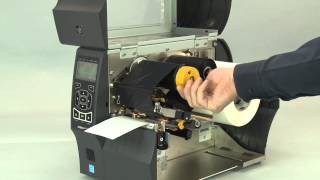

• Side-loading supplies path for simplified media and ribbon loading
• Element Energy Equalizer™ (E3™) for superior print quality
• Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host
• Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation
• Bi-colored status LEDs for quick printer status
• ENERGY STAR® qualified

Printer Specifications

Resolution

• 203 dpi/8 dots per mm
• 300 dpi/12 dots per mm (optional)
• 600 dpi/24 dots per mm (optional for ZT410 only)

Memory

• 256 MB SDRAM memory
• 512 MB on-board linear Flash memory

Maximum Print Width

• 4.09"/104 mm (ZT410)
• 6.6"/168 mm (ZT420)

Maximum Print Speed

• 14 ips/356 mm per second (ZT410)
• 12 ips/305 mm per second (ZT420)

Media Sensors

Dual media sensors: transmissive and reflective

Media Characteristics

Media web width (label and liner):

• ZT410

   1.00"/25.4 mm to 4.5"/114 mm tear/cutter

   1.00"/25.4 mm to 4.25"/108 mm peel/rewind

• ZT420

   2.00"/51 mm to 7.0"/178 mm tear/cutter

   2.00”/51 mm to 6.75”/171 mm peel/rewind Maximum non-continuous label length:  39"/991 mm

Print Length

• ZT410

–– 203 dpi: 157”/3988 mm

–– 300 dpi: 73”/1854 mm

–– 600 dpi: 39”/991 mm

• ZT420

–– 203 dpi: 102”/2591 mm

–– 300 dpi: 45”/1143 mm

Maximum Media Roll Size

8.0"/203 mm O.D. on a 3"/76 mm I.D. core

Media Thickness

0.0023"/0.058 mm to 0.010"/0.25 mm

Media Types

Continuous, die-cut, notch, black-mark

Ribbon Characteristics

(Thermal-transfer option only)

Outside Diameter 450 m: 3.2”/81.3 mm O.D. on a 1.0"/25.4 mm I.D. core

Standard Length 1476’/450 m

Width

• ZT410 - 2.00"/51 mm to 4.33"/110 mm

• ZT420 - 2.00"/51 mm to 6.85"/174 mm

Ribbon Setup

Ribbon wound ink-side out; ribbon wound ink-side in can be used with the optional ribbon spindle

Operating Characteristics

Environmental

• Operating Environment:

    Thermal transfer: 40º to 104ºF/5º to 40ºC

    Thermal direct: 32º to 104ºF/0º to 40ºC

    20% to 85% non-condensing R.H.

• Storage/Transportation Environment:

    -40º to 140ºF/-40º to 60ºC

    5% to 85% non-condensing R.H.

 Electrical

• Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, rated at 100 Watts
• ENERGY STAR qualified

 Agency Approvals

• IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
• cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

 Physical Characteristics

                          ZT410 closed      ZT420 closed

Width:              10.6”/269 mm      13.25”/336.55 mm

Height:             12.75”/324 mm     12.75”/324 mm

Depth:              19.50”/495 mm     19.50”/495 mm

Weight:            36 lb./16.33 Kg      40 lb./18.14 Kg

Options and Accessories

Communication

• Parallel (Bi-directional interface)
• Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features

Media Handling

• Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (Factory installed only)
• Peel: Front-mount, passive peel option
• Peel: Liner take-up option – additional full-roll liner take-up spindle accommodates standard printer base
• Cutter: Front-mount guillotine cutter and catch tray
• 1" I.D. Core media supply hanger
• Ink-side in ribbon supply spindle RFID
• Supports tags compatible with UHF EPC Gen 2 V1.2/ISO 18000-6C
• Integrated RFID system is user-upgradable in the field and available on both 4” and 6” models
• Adaptive Encoding Technology automatically selects optimum encode settings

Keyboard Display Unit

Supports KDU Plus™ and ZKDU: Enter variable data and retrieve stored forms for standalone applications

Link-OS Solutions

Software Tools

• Document Design: Quickly design a customized print solution using your business data and Zebra's intuitive, plug-and-print design tools.
• Device Integration: Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
• Device Management: Manage your print operations locally and globally with Zebra's suite of device management tools.
• Developer Tools: Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.

Firmware

• Resident ZPL, ZPL II® and EPL= programming languages, selectable through software or front
• XML-enabled Printing — allows XML communications for barcode label printing.

Barcode Symbologies

• Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
• 2-Dimensional Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

• 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
• Asian and other international scalable and smooth bitmapped fonts
• Unicode: For multi-language printing
• Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
• IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
• Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
• 64 MB user available non-volatile memory storage for downloadable
• objects
• 4 MB user-available SDRAM
