STANDARD FEATURES

• Print methods: Thermal Transfer or Direct Thermal
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• USB 2.0, USB Host, Serial, Ethernet, BTLE
• Media dancer
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified
• Real Time Clock

PHYSICAL CHARACTERISTICS

                 ZD620d               ZD620t

Length      8.7 in./221 mm      10.5 in./ 267 mm

Width       7.0 in./177 mm      8.0 in./ 202 mm

Height      5.9 in./151 mm       7.5 in./ 192 mm

Weight     3.6 lb/ 1.6 kg         5.5 lb/2.5 kg

PRINTER SPECIFICATIONS

Operating System Link-OS®

Resolution

• 203 dpi/8 dots per mm
• Optional 300 dpi/12 dots per mm
• Resolution can be factory installed or changed on site via accessory kits. Resolution can be changed from 300 dpi to 203 dpi, as well as from 203 dpi to 300 dpi

Memory 512 MB Flash; 256 MB SDRAM

Maximum Print Width

4.09 in./104 mm for 203 dpi

4.27 in./108 mm for 300 dpi

Maximum Print Speed

8 in./203 mm per second (203 dpi)

6 in./152 mm per second (300 dpi)

Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor

Firmware ZPL II; EPL 2; XML; ZBI

MEDIA AND RIBBON CHARACTERISTICS

Maximum Label Length 39.0 in./991 mm

Media Width

• ZD620t — 0.585 in./15 mm to 4.65 in./118 mm
• ZD620d — 0.585 in./15 mm to 4.25 in./108 mm

Media Roll Size

Maximum outer diameter: 5.00 in./127 mm

Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in.

(25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm)

and 3.0 in. (76.2 mm) using optional adapters

Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max.

(tear-off mode only)

Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, linerless media*

* For use only with linerless printer model

MEDIA AND RIBBON CHARACTERISTICS (CONTINUED)

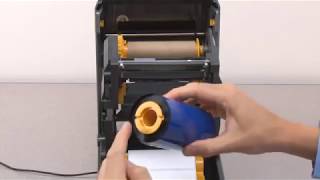

Ribbon Outside Diameter

2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)

Ribbon Standard Length

984 ft. (300 m); 244 ft. (74 m)

Ribbon Ratio

1:4 media to ribbon (300 m)

1:1 media to ribbon (74 m)

Ribbon Width 1.33 in./33.8 mm — 4.3 in./109.2 mm

Ribbon Core I.D.

300 meter ribbon 1 in./25.4 mm

74 meter ribbon 0.5 in./12.7 mm

OPERATING CHARACTERISTICS

Operating Temp. 40⁰ to 105⁰ F/4.4⁰ to 41⁰ C

Storage Temp. -40⁰ to 140⁰ F/-40⁰ to 60⁰ C

Operating Humidity 10% to 90% non-condensing

Storage Humidity 5% to 95% non-condensing

Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified; optional 2750 mAH battery

OPTIONS AND ACCESSORIES

Media Handling

Factory installed dispenser — label peel and present with label present sensor Factory installed cutter Field installable aftermarket kits also available

Communications Factory installed wireless radio: 802.11ac Wi-Fi and

Bluetooth 4.1

User Interface Color LCD (320 x 240 resolution) with 5 status icons,

10 button user interface

Battery Provides power to the printer to support a full shift of printing at maximum print speed. Supports all media handling options.

Keyboard Display Unit

ZKDU keyboard display units for stand-alone

printing solutions

Media Locking Cabinet

Mechanical lock with 2 keys; Kensington® lock slot; available on ZD620d Healthcare only

Mounting Plate Optional accessory to secure ZD Series printers to

countertops or shelves

Enclosed Power Supply

Attached power supply accessory for cord-free installation

FONTS/GRAPHICS/SYMBOLOGIES

Barcode Ratios 2:1 and 3:1

1D Barcodes Code 11, Code 39, Code 93, Code 128, ISBT-128,

UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code

2D Barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
