Standard Features

• Full-function front panel and large multilingual back-lit LCD display—with user-programmable password protection
• Thin film printhead with Element Energy Equalizer™ (E3™) for superior print quality
• 8 MB Flash memory—including 2 MB useravailable non-volatile memory storage for downloadable objects
• Serial RS-232 and bi-directional parallel ports— with auto detect
• USB 2.0

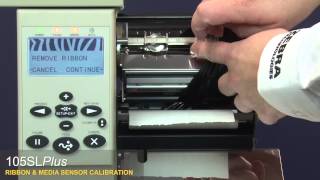

• Dual media sensors—transmissive and reflective, selectable through software or front panel
• Internal ZebraNet® 10/100 Print Server—supports 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks.

Printer Specifications

Resolution

• 203 dpi/8 dots per mm
• 300 dpi/12 dots per mm (optional)

Memory

Standard: 16 MB SDRAM; 8 MB Flash

Print width

4.0”/102 mm

Print length

• 203 dpi: 150”/3810 mm (with standard emory)
• 300 dpi (optional): 100”/2540 mm (with  tandard memory)

Print speed

• 203 dpi: 12”/305 mm per second
• 300 dpi: 10”/254 mm per second

Media Specifications

• Media types: continuous, die-cut, or black  ark,
• notch
• Media thickness (label and liner): 0.003”/0.076 mm to 0.012”/0.305 mm
• Maximum media roll size: 8.0”/203 mm O.D. on a 3”/76 mm I.D. core
• Media width (label and liner): 0.79”/20 mm to 4.5”/114 mm
• Maximum non-continuous label  ength: 39”/991 mm

Operating Characteristics

Environmental

• Operating environment:
• Thermal transfer = 40° F/5° C to 105° F/40° C
• Direct thermal = 32° F/0° C to 105° F/40° C
• Operating Humidity: 20% to 85% non-condensing
• Storage/Transportation environment: -40° F/-40° C to 140° F/60° C
• Storage Humidity: 5% to 85% non-condensing

Electrical

• Universal power supply with power-factor correction 100-240 VAC, 47–63 Hz
• Agency Approvals
• IEC 60950-1, EN 55022 Class B, EN 55024,  N
• 61000-3-2, EN 61000-3-3
• Product Markings: cTUVus, CE, FCC-B, ICES- 003, VCCI, C-Tick, NOM, S-Mark(Arg), CCC, GOST-R, BSMI, KCC, and UkrSEPRO

Physical Characteristics

• Height: 15.5”/393.7 mm
• Width: 10.31”/261.9 mm
• Depth: 20.38”/517.5 mm
• Weight: 50 lbs/22.7 kg

 Options and Accessories

• 300 dpi
• Cutter and catch tray
• Media rewind spindle—internal finished roll  rewind or passive-peel with liner take-up spindle  64 MB On-Board Linear Flash Memory (factory installed only)
• Scalable and international fonts

 ZebraLink™ Solutions

Software

• ZebraDesigner™ Pro
• ZebraDesigner for XML
• ZebraNet™ Bridge Enterprise
• ZebraNet™ Utilities v 7.0

Optional Connectivity

• ZebraNet® b/g Print Server (internal)

Firmware

• ZPL II®
• Zebra Global Printing Solution
• Web View & Alert
• ZBI 2.0™ (optional)

Fonts/Graphics/Symbologies

Fonts and Character Sets

• Zebra Global printing solution including Unicode™
• Swiss 721 font standard
• Bitmap fonts A to H and GS symbols are expandable up to 10 times, height- and widthindependent
• Smooth-scalable font Ø (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, heightand width-independent
• IBM® Code Page 850 International Characters
• Contains UFST® from Agfa Monotype Corporation
• Firmware support for downloadable TrueType™ fonts
• Additional fonts available

Graphics Features

• Supports user-defined fonts and graphics, including custom logos

Barcode Symbologies

• All standard linear and 2D barcodes supported For optimum print quality and printer performance, use genuine Zebra™ supplies.

*Specifications
