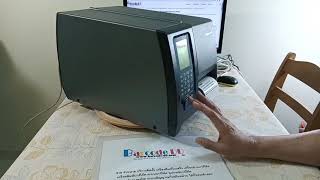

DESCRIPTION

Industrial mid-range, direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.

 PHYSICAL CHARACTERISTICS

PM43: LxHxW: 483 x 295 x 284 mm

(19.0 x 11.6 x 11.2 in); Weight: 15.82 kg (34.88 lbs)

PM43c: LxHxW: 431 x 181 x 253 mm

(17.0 x 7.1 x 9.9 in); Weight: 12.5 kg (27.65 lbs)

PM43c with Dome Door:

LxHxW: 500 x 245 x 253 mm (19.6 x 9.6 x 9.9 in);

Weight: 12.71 kg (28.02 lbs)

PM23c: LxHxW: 431.84 x 181 x 205.5 mm

(17 x 7.13 x 8.09 in)

PM23c with Dome Door: LxHxW: 500.22 x

244.87 x 205.5 mm (19.69 x 9.64 x 8.09 in)

PM23c with Bag Tag Door: LxHxW: 431.84 x

207 x 205.5 mm (17 x 8.15 x 8.09 in);

Weight: 9.5 kg (21 lbs)

PM43/43C PRINT SPECIFICATIONS

Max. Width at 203 dpi: 108 mm (4.25 in)

Max. Width at 300 dpi: 106 mm (4.17 in)

Max. Width at 406 dpi: 104 mm (4.09 in)

Max. Length at 203 dpi: 4.8 m (15.75 ft)

Max. Length at 406 dpi: 1.2 m (3.94 ft)

PM23C PRINT SPECIFICATIONS

Max. Width at 203 dpi: 56 mm (2.2 in)

Max. Width at 300 dpi: 56 mm (2.2 in)

Max. Width at 406 dpi: 64 mm (2.5 in)

 RFID STANDARDS & FREQUENCIES

18000-6C / EPC Class 1 Generation 2    865–928 MHz radio configured to comply with local UHF RFID regulations including FCC and

ETSI. Contact local representative for availability in particular regions.

PRINT SPEED

At 203/300 dpi: 100–300 mm/s (4–12 ips)

At 406 dpi: 100–250 mm/s (4–10 ips)

PRINT RESOLUTION

At 203 dpi: 8 dots/mm

At 300 dpi: 11.8 dots/mm

At 406 dpi: 16 dots/mm

 MEDIA

Type: Labels and Tags, Linerless and Linered media

PM43/43c Max/Min Width:  114/19 mm (4.5/0.75 in)

Thickness: 3 to 10.4 mil

PM23c Max/Min Width: 68/19 mm (2.7/0.75 in)

Configuration: Roll-fed or fanfold

Sensing: Gap, notch, black mark, continuous

Label Roll Max. Diameter: 152 mm (6 in) for long door models; 213 mm (8.38 in) for all other models

Label Roll Core: 38–76 mm (1.5–3 in)

Type: Ribbons

PM43 Roll Max. Diameter:

80 mm (3.15 in), approx. 450 m

PM23/43c Roll Max. Diameter:

61 mm (2.40 in), 229 m

Core ID: 25 mm (1 in)

Type: Wax, mid-range, resin

INTERFACES

Standard:

• Ethernet 10/100 Mbps
• RS-232, up to 115.2 KB/s
• Supported Serial Protocols:

        – Fingerprint/Direct Protocol: XON/XOFF, ENQ/ ACK,
DSR/DTR, RTS/CTS

        – IPL: XON/XOFF, Honeywell Std. Protocol

• USB 2.0
• USB Host (X1 on PM23c/PM43c, X2 on PM43)

Optional:

• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop
• Dual USB Host

 Wireless:

• IEEE 802.11 a/b/g/n + Bluetooth
• Wi-Fi Certified, CCX (Cisco) version 4 Certified
• Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (TKIP/CCKM Personal and Enterprise),
  WPA2 (AES-CCMP/CCKM Personal and Enterprise)

• Multiple industrial antenna options for maximized coverage

Supported Protocols:

• TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP
• Supports IPv4 and IPv6

 SOFTWARE

Printer Command Languages:

• IPL, DP, ZSim2 (ZPL-II), DSim (DPL)
• XML enabled for SAP AII and Oracle®WMS

Applications/Drivers:

• InterDriver Windows printer driver
• CUPS driver for Linux
• Honeywell Device Types for SAP
• Honeywell label design and print package

Smart Printing Languages:

• Honeywell C# for Printers

      – Smart Printing Developer Resource Kit

      – Write apps with .NET-compatible development environments

• Honeywell Fingerprint

      – Use Honeywell Fingerprint ApplicationBuilder

Configuration & Device Management Support:

• PrintSet for printer configuration
• SmartSystems for remote management
• Sophisticated web interface for configuration, upgrade and 1:1 management
• Wavelink Avalanche

BAR CODE SYMBOLOGIES

All major 1D and 2D symbologies are supported.

 STANDARDS SUPPORTED

UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); OGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS Shipping label; Global Transport Label

FONTS

Monotype font engine. Non-Latin fonts available through WTLE

GRAPHICS

Supports PCX, PNG, GIF and BMP file formats. Other formats supported with Label Generation Tools.

MEMORY

Standard: 128 MB Flash memory, 128 MB SDRAM, Multi-GB USB memory device (FAT16/FAT32)

USER INTERFACE

Color Touch UI, Icon UI

USER INTERFACE LANGUAGES

On Color Touch LCD and Web Interface: English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Simplified and Traditional Chinese

POWER SUPPLY

AC Voltage: 100 to 240 VAC, 45 to 65Hz

PFC Regulation: IEC320/C14

Power Consumption: Standby 9W; Peak 300W

OPERATING ENVIRONMENT

Ambient Operating Temperature:

+5⁰C to +40⁰C (+41⁰F to +104⁰F)

Storage Temperature:

-20⁰C to +70⁰C (-4⁰F to +152⁰F)

Humidity: 20 to 80% non-condensing

REGULATORY APPROVALS

RoHS Compliant, CE (EN55022 Class A),FCC Class A, UL/cUL, D Mark and CCC

OPTIONS AND ACCESSORIES

Consult the PM Series Accessory Guide for full details: Integral self-strip unit with liner takeup, label taken sensor (LTS), media low sensor, media supply hub, parallel interface board, real-time clock, RFID UHF, additional serial interface boards1, industrial interface boards1, collapsible ribbon and liner core2, cutter2, linerless2, full batch label/liner rewinder3

1 Not applicable when using IPL firmware.

2 Compatible with PM43 and PM43c only.

3 Compatible with PM43 only.
